Forge Hardware Standard Descaling Machine is applicable to the oxide scale layer cleaning of forge hardware forgings, and it can clean the scale of 15-120mm diameter round bars after heating in induction furnace,and also could clean the size under 110*80mm hot billets.
Item NO.:
DMS-80-20Payment:
50%DOWN PAYMENT,50% BEFORE SHIPPINGProduct Origin:
CHINAColor:
BLUEGoods stock:
100Product weight:
650 kgShipping Port:
SHANGHAILead Time:
1 MONTH
Forge Hardware Standard Descaling Machine
Forge Hardware Standard Descaling Machineadopts the principle of high-pressure water descaling system, and the water pressure can reach 1.8-2.0mpa. It can effectively remove the oxide scale of all kinds of forgings production line,for example hammer forging,ring rolling forging,die forging,open forging etc.And the cooling range of forgings can be controlled within 30 ℃. At present, this descaling equipment has been widely used in China and some other foreign countries, and the improvement of forging surface quality has been recognized by the market.

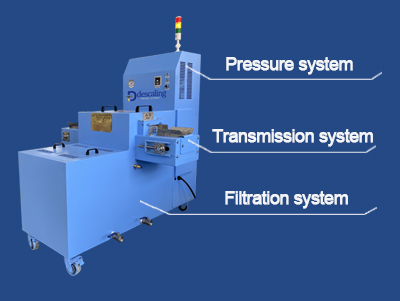

The descaling machine from Descaling technology, the main body of the equipment is composed of a pressure system, a transmission system and a filtration system. The three systems jointly use the principle of high-pressure water descaling to complete the cleaning process of the forging scale.

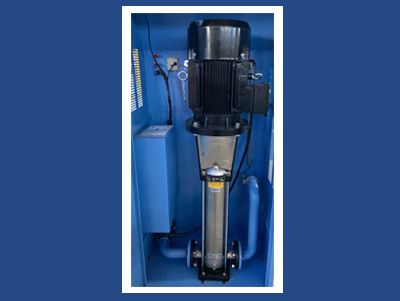

The high-pressure water descaling system is adopted, and the high-pressure water generated by the high-pressure water pump enters the descaling nozzle and is sprayed on the surface of the forging (or intermediate billet). The oxide scale has undergone the process of being cut, rapidly cooled and contracted, peeled from the base material, and washed away from the surface of the forging, thereby removing the oxide scale.

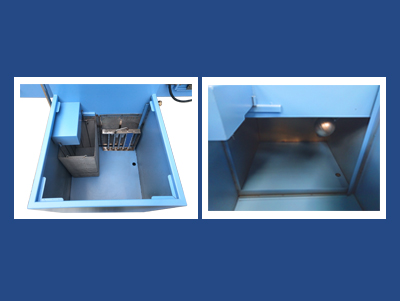

The descaling machine is equipped with two water tanks. The water tank has a built-in filter screen and a net basket to form the filter system of the equipment to prevent oxide scale from entering the water pump and affect the service life of the equipment. At the same time, it is equipped with a magnetic shovel to clean the oxide scale in the water tank.

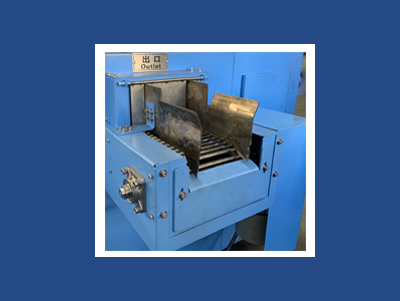

The frequency conversion motor and the chain constitute the transmission system, which is responsible for transporting the forgings for the cleaning process. The transmission speed of the chain can be adjusted to ensure that the temperature of the forgings after cleaning is small, which is conducive to subsequent forging.
1，The main body of the water tank is made of 304 stainless steel and painted with blue sky
8，After removing the oxide scale, the metallographic structure of the product has no chang
|
Name |
Model | Dimension(mm) | Equipment power | Pump brand | Flow |
|
Small standard descaling machine |
DMS-80-20 |
1300*1500*1460 |
8.25KW |
Nanfang pump |
8m³/h |
|
Suitable for bar diameter(mm) |
Width and height after blank making(mm) |
Number of nozzles |
Material |
Transmission motor |
Chain specification |
|
15-80 |
110*80 |
18 |
304 stainless steel |
Speed control motor |
16A |
