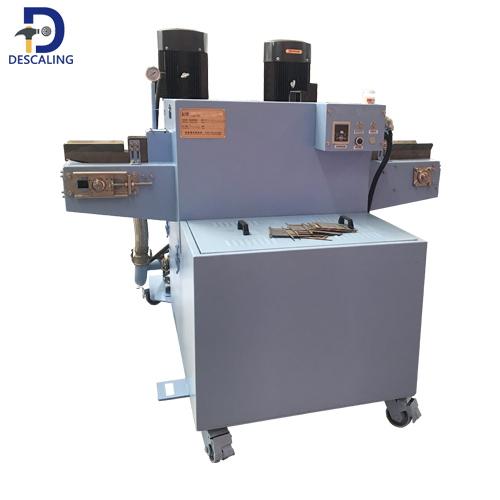

Non-standard Custom-made Large Double Pump Descaling Machine is applicable to the oxide scale cleaning of all kinds of forgings, and it can clean the scale of 55-150mm diameter round bars after heating in induction furnace, and also could clean the size under 150*150mm heated blanks. It is especially suitable for cleaning large forgings. The pressure and nozzle of the equipment can be customized according to the size of forgings to realize the scale removal process of large forgings.
Item NO.:
DMC-150-30Payment:
100%Product Origin:
CHINAColor:
STAINLESSGoods stock:
50Product weight:
1000 kgShipping Port:
SHANGHAILead Time:
2 MONTHSForging Valve Double Pump Descaling Machine
The descaling machine of Nanjing Descaling Technology uses the principle of high pressure dephosphorization. In fact, the principle of high pressure phosphorus removal has been applied in forging industry for a long time. It is ultra-high pressure technology, the most famous is the descaling equipment of SGGT from Germany with high equipment cost. According to the actual needs of the forging factories, Descaling Technology has invented the forging oxide scale cleaning machine. At present, it has passed the test of the market for five years, has won six national practical appearance double patents. We are specialized in removing forging oxide scale. At present, it is the ninth generation product to help enterprises solve the defects of the oxide scale on forging pieces. The products cleaned by Descaling Technology descaling machine are approved by foreign top 500 enterprises the third party metallographic examination.

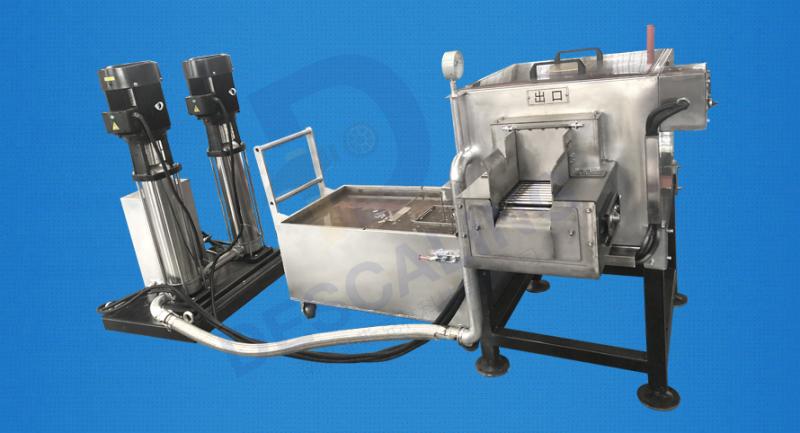

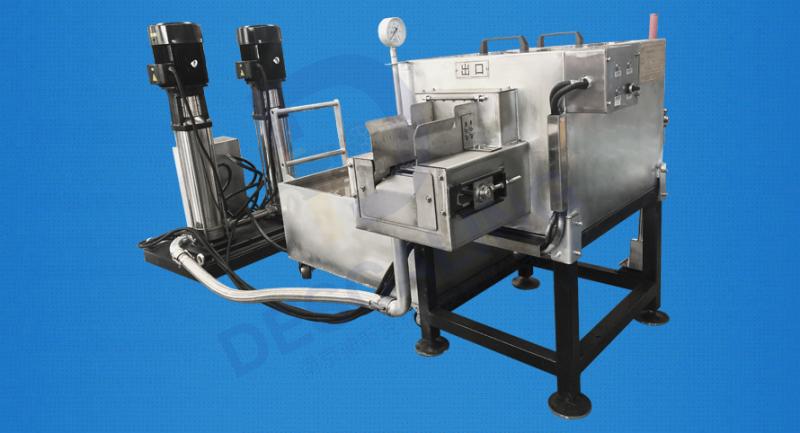

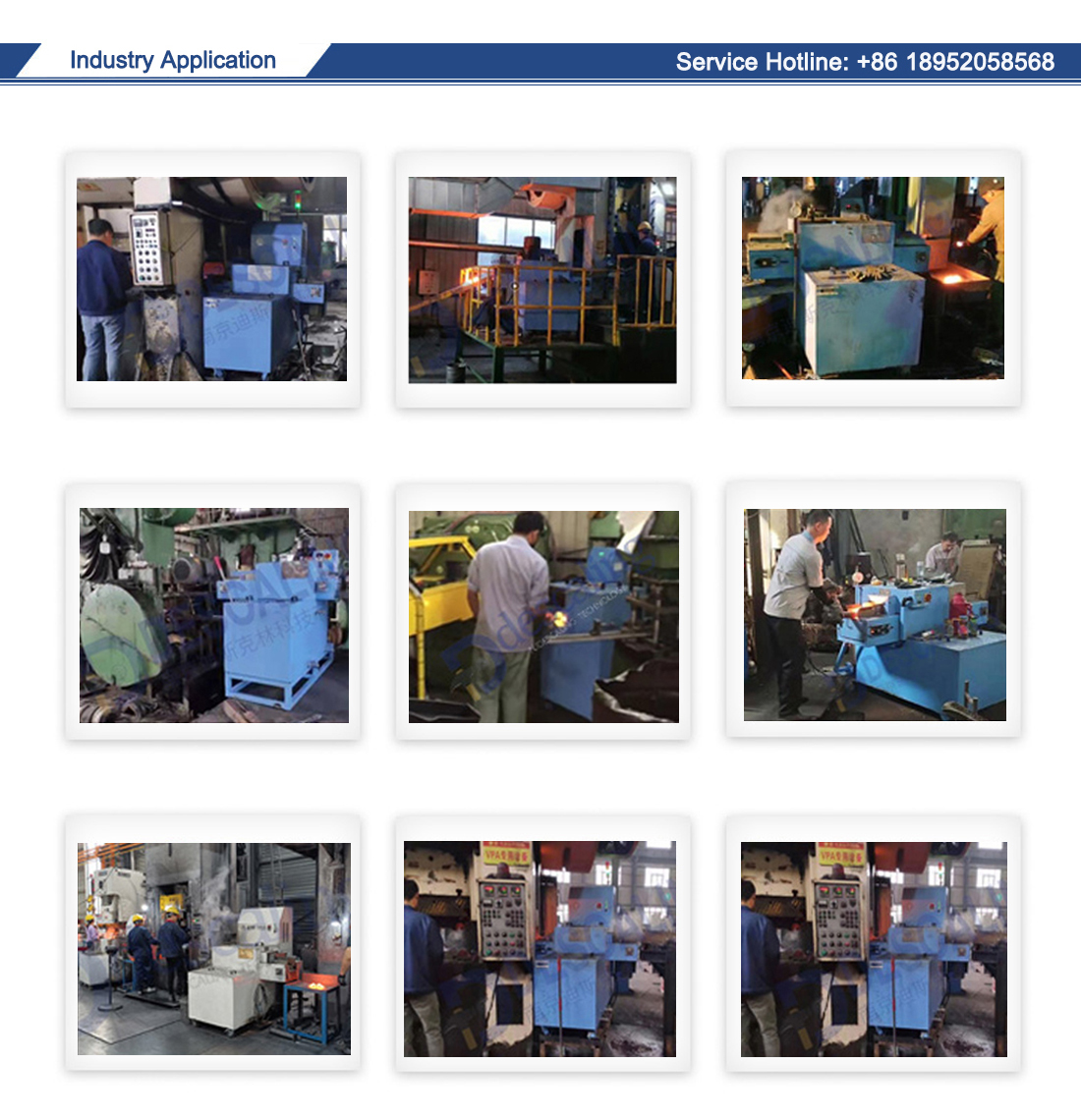

The oxide scale cleaning machine for large forgings in the figure below adopts a split design, which can better complete the oxide scale cleaning process. Most of this equipment is used in the forging of auto parts and the forging field of agricultural machinery, such as crankshaft, connecting rod, wheel hub, ploughshare,Valve (main cleaning materials A105, A4137, A4130) etc.
|

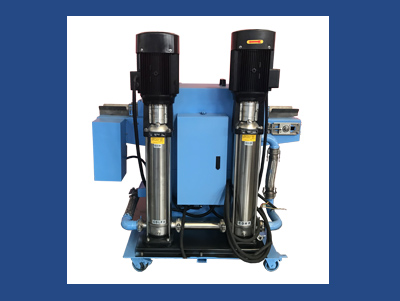

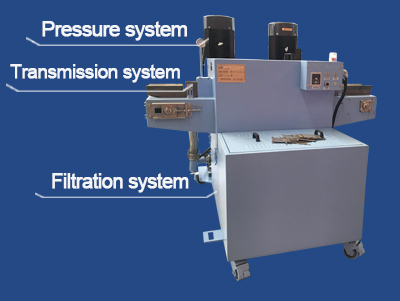

The descaling machine from Descaling technology, the main body of the equipment is composed of a pressure system, a transmission system and a filtration system. The three systems jointly use the principle of high-pressure water descaling to complete the cleaning process of the forging scale. |

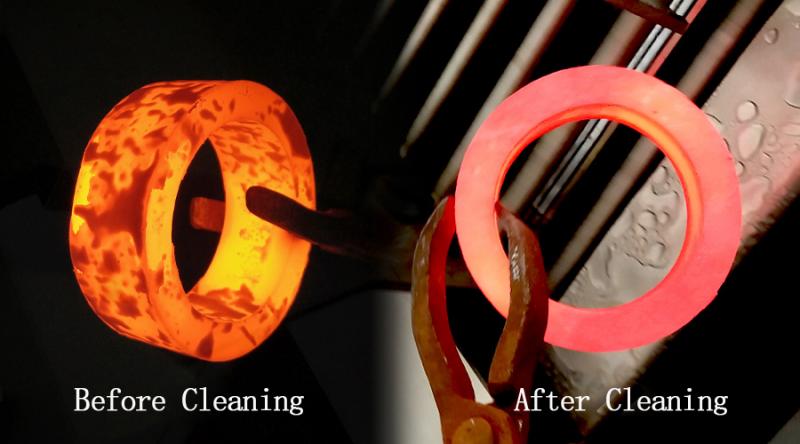

The high-pressure water descaling system is adopted, and the high-pressure water generated by the high-pressure water pump enters the descaling nozzle and is sprayed on the surface of the forging (or intermediate billet). The oxide scale has undergone the process of being cut, rapidly cooled and contracted, peeled from the base material, and washed away from the surface of the forging, thereby removing the oxide scale. |
|
|
The frequency conversion motor and the chain constitute the transmission system, which is responsible for transporting the forgings for the cleaning process. The transmission speed of the chain can be adjusted to ensure that the temperature of the forgings after cleaning is small, which is conducive to subsequent forging. |

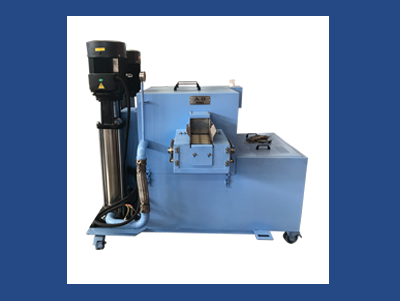

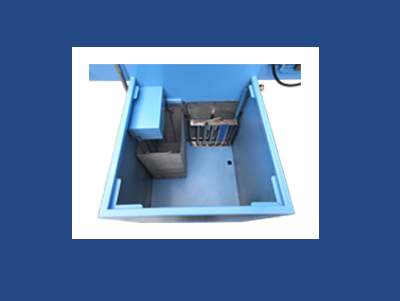

The descaling machine is equipped with two water tanks. The water tank has a built-in filter screen and a net basket to form the filter system of the equipment to prevent oxide scale from entering the water pump and affect the service life of the equipment. At the same time, it is equipped with a magnetic shovel to clean the oxide scale in the water tank. |
|
1, The main body of the water tank is made of 304 stainless steel and painted with blue sky
2, The exit and entrance adopt integral welding with high parallelism
3, Front and back built-in baffle, less splash, easy maintenance
4,The nozzle mounting seat is welded with stainless steel, which is easy to maintain
5,Comprehensive treatment of oxide skin, less lower the temperature
6,After removing the oxide scale, the metallographic structure of the product has no chang
Name | Model | Dimension(mm) | Equipment power | Pump brand | Flow |
100 Double Pump Descaling Machine |
DMS-100-100-30 |
1610*1630*1500 |
15.75KW |
Famous brand |
8m³/h |
Suitable for bar diameter(mm) |
Width and height after blank making(mm) |
Number of nozzles |
Material |
Transmission motor |
Pressure range |
60-100 |
100*100 |
18 |
304 stainless steel |
Speed control motor |
2.8-3.5Pa |
